40G QSFP+ Module
|
4 x 10Gbps Transmission |
Applications
Quad Small Form Pluggable Plus (QSFP+) Transceiver Modules available with:
|
|
100G QSFP28 Module
|
4 x 28Gbps transmission |
Applications
Quad Small Form Pluggable 28Gbps (QSFP28) Transceiver Modules available with:
Supports various wavelengths such as 850nm, 1310nm , CWDM and distances up to 25km |
 |
100G QSFP28 Single Lambda
|
2 x 50Gbps transmission |
Applications
|
Compact Quad Small Form Pluggable (QSFP) 100G Single Lamda Transceiver Module. Available options:
Supports applications such as:
Connector type: LC Compliant with IEEE 802.3bs, IEEE P802.3cm and 100G Lambda MSA |
 |

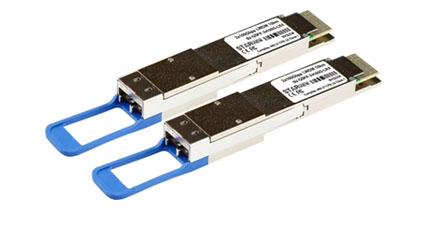

2x100G QSFP-DD Module8 x 25Gbps transmission |
Applications
|
Compact Quad Small Form Pluggable – QSFP Double Density (QSFP-DD) Transceiver Modules up to 2x100Gbps
Supports applications such as:
Connector type: Dual CS Compliant with IEEE 802.3bs, IEEE P802.3cm and 100G Lambda MSA |
 |
400G QSFP-DD Module
|
4 x 100Gbps transmission |
Applications
|
Compact Quad Small Form Pluggable – Double Density (QSFP56-DD) Transceiver Modules up to 400Gbps . Available with 8 x 50G and 4 x 100G options:
Supports applications such as:
Connector type: MPO-16(APC), MPO-12(APC), LC Compliant with IEEE 802.3bs, IEEE P802.3cm and 100G Lambda MSA The QSFP-DD has an advantage in that is more widely adopted and offers simpler backward compatibility. |
 |
Ordering Information
Temperature Option : Standard Temperature - 0°C to +70°C
AOC
Standard
| Data Rate | Part Number | Type | Wavelength | Length (m) |
TX Power (dBm) | RX Sens. (dBm) | Fiber Budget (dB) | Datasheet |
| SV-QSFP-40GT4T4-1M | 1 |   |
||||||
| SV-QSFP-40GT4T4-3M | 3 | |
||||||
| 40Gb/s | SV-QSFP-40GT4T4-5M | 5 | |
|||||
| SV-QSFP-40GT4T4-7M | 7 | |
||||||
| SV-QSFP-40GT4T4-10M | 10 | |
||||||
| SV-QSFP-40GT4T4-15M | 15 | |
||||||
| SV-QSFP-40GT4T3-1M | 1 | |
||||||
| SV-QSFP-40GT4T3-3M | 3 | |
||||||
| 4 x 10.3125Gb/s | SV-QSFP-40GT4T3-5M | 5 | |
|||||
| SV-QSFP-40GT4T3-7M | 7 | |
||||||
| SV-QSFP-40GT4T3-10M | 10 | |
||||||
| SV-QSFP-100GT4T4-1M | 1 | |
||||||
| SV-QSFP-100GT4T4-3M | 3 | |
||||||
| 100Gb/s | SV-QSFP-100GT4T4-5M | 5 | |
|||||
| SV-QSFP-100GT4T4-7M | 7 | |
||||||
| SV-QSFP-100GT4T4-10M | 10 | |
||||||
| SV-QSFP-100GT4T3-1M | 1 | |
||||||
| SV-QSFP-100GT4T3-3M | 3 | |
||||||
| 4 x 25Gb/s | SV-QSFP-100GT4T3-5M | 5 | |
|||||
| SV-QSFP-100GT4T3-7M | 7 | |
||||||
| SV-QSFP-100GT4T3-10M | 10 | |
||||||
QSFP Modules
Standard
| Data Rate | Part Number | Type | Wavelength | Distance (km) |
TX Power (dBm) | RX Sens. (dBm) | Fiber Budget (dB) | Datasheet |
| SV-QSFP-40G-PSR4 | MM | 850nm | 0.15 | -7.6 to 1.0 | -9.5 to 2.4 | 1.9 | |
|
| SV-QSFP-40G-PESR4 | MM | 850nm | 0.3 | -7.3 to 1.0 | -9.9 to 2.4 | 2.6 | |
|
| SV-QSFP-40G-PLR4L | SM | CWDM Lite | 1.4 | -5.5 to 1.5 | -11.5 to 1.5 | 6 | |
|
| 40Gb/s | SV-QSFP-40G-LR4L | SM | CWDM Lite | 2 | -7.0 to 2.3 | -11.7 to 2.3 | 4.7 | |
| SV-QSFP-40G-PLR4 | SM | 1310nm | 10 | -5.5 to 1.5 | -12.6 to 1.5 | 7.1 | |
|
| SV-QSFP-40G-LR4 | SM | CWDM | 10 | -7 to 2.3 | -13.7 to 2.3 | 6.7 | |
|
| SV-QSFP-40G-ER4 | SM | CWDM | 40 | -2.7 to 4.5 | -21.2 to -4.5 | 18.5 | |
|
QSFP 28 Modules
Standard
| Data Rate | Part Number | Type | Wavelength | Distance (km) |
TX Power (dBm) | RX Sens. (dBm) | Fiber Budget (dB) | Datasheet |
| SV-QSFP-100G-PSR4 | MM | 850nm | 0.10 | -6 to 2.4 | -20 to -5.2 | 14 | |
|
| SV-QSFP-100G-PLR4L | SM | 1310nm | 2 | -5.5 to 2.0 | -10.2 to 2.0 | 4.7 | |
|
| SV-QSFP-100G-CLR4L | SM | CWDM | 2 | -4.0 to 2.5 | -10 to 2.5 | 6.0 | |
|
| SV-QSFP-100G-CLR4 | SM | CWDM | 10 | -4.0 to 2.5 | -25 to -11.5 | 21 | |
|
| 100Gb/s | SV-QSFP-100G-LR4 | SM | LWDM | 10 | -4.3 to 4.5 | -12 to -8.6 | 7.7 | |
| SV-QSFP-100G-LR4F | SM | LWDM FEC | 10 | -0.6 to 4.0 | -11.6 to -8.4 | 11 | |
|
| SV-QSFP-100G-ER4 | SM | LWDM | 30(Non-FEC)/40(FEC) | -2.9/-2.9 to 4.5/4.5 | -16.9/-20.9 to -4.9/-4.9 | 14/18 | |
|
| SV-QSFP-100G-ER4F | SM | LWDM FEC | 30(Non-FEC)/40(FEC) | -1.1/-1.1 to 4.5/4.5 | -15.1/-19.1 to -4.9/-4.9 | 14/18 | |
|
