XENPAK
XENPAK I FEATURES
XENPAK I SPECIFICATIONS
Compatible with XENPAK MSA Rev3.0
Standards
IEEE 802.3z 1000BASE-SX; 1000BASE-LX
Support of IEEE 802.3ae 10GBASE-LR
Dimensions
Width: 1.42” [36 mm]
Plug-and-Play module
Hot Pluggable 70-PIN Connector with XAUI
Depth: 4.76” [121 mm]
Electrical Interface
Height: 0.47” [18 mm]
Management and control via MDIO 2-wire
interface
Power
5V, no external power required
Adaptable Power Supply (APS:+1.2V)
Power Consumption
0.8 Watts
SC duplex Optical connector
Dual Fiber Strands XENPAK Modules
Environment
0°C – 70°C
CWDM Dual Strands XENPAK Modules
Compliance
UL Registered, CSA, IEC 60825-1 and
C Band DWDM Dual Fiber Strands XENPAK
1

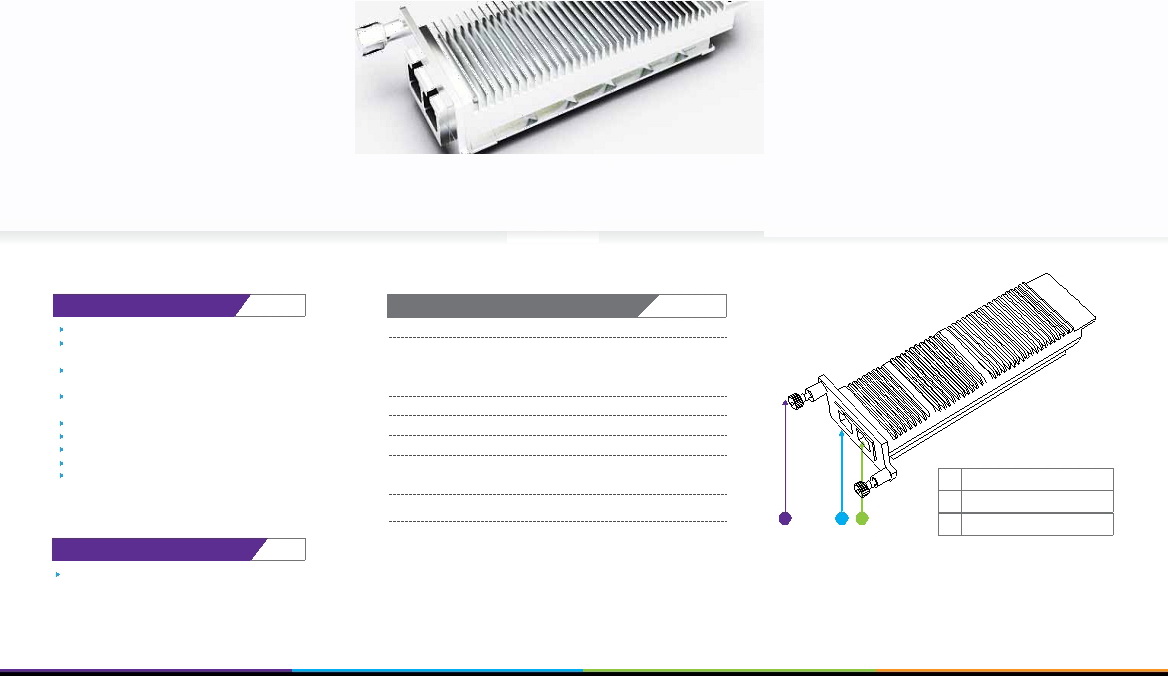

Captive installation screw 4
Modules
IEC 60825-2, CE Mark
Warranty
2 year
2
Receive optical bore
1
2
3
3
Transmit optical bore
XENPAK I APPLICATIONS
Supports 10G Ethernet 10.312Gbps
application
For requires please email to sales@starviewint.com I 1
XENPAK I ORDERING INFO
Dual Fiber Strands XENPAK Modules
Temperature
Applications
Part NO
DateRate
Wavelength
Distance
Fiber Budget
TX Power
RX Sens.
With Digital Diag-
Normal
10G Ethernet
(km)
(dB)
(dBm)
(dBm)
nostic Monitoring
0 ~ +70
10.312Gbps Application
(DDM)
SV-XENPAK-SR
10G;MM
850nm
0.3
5
-5 ~ -1
-11
SV-XENPAK-ESR
10G;MM
1310nm
0.2
5
-4.5 ~ 1.5
-12
SV-XENPAK-LR1
10G;SM
1310nm
10
8
-8 ~ 0
-10
SV-XENPAK-ER4
10G;SM
1550nm
40
12
1 ~ 2
-11
XENPAK I ORDERING INFO
C-Band DWDM Dual Fiber Strands XENPAK Modules
Temperature
Applications
Part NO
DateRate
Wavelength
Distance
Fiber Budget
TX Power
RX Sens.
With Digital Diag-
Normal
10G Ethernet
(km)
(dB)
(dBm)
(dBm)
nostic Monitoring
0 ~ +70
10.312Gbps Application
(DDM)
SV-XENPAK-ER4D##
10G;SM
DWDM
40
14
-1 ~ 2
-15
Wavelength
## denotes DWDM Wavelength Guide
C-Band Wavelength
## ITU
Wav Frequency
## ITU
Wav Frequency
## ITU
Wav Frequency
## ITU
Wav Frequency
## ITU
Wav Frequency
## ITU
Wav Frequency
Channel -length
(THz)
Channel -length
(THz)
Channel -length
(THz)
Channel -length
(THz)
Channel -length
(THz)
Channel -length
(THz)
17
1563.86
191.7
25
1557.36
192.5
33
1550.92
193.3
41
1544.53
194.1
49
1538.19
194.9
57
1531.90
195.7
18
1563.05
191.8
26
1556.55
192.6
34
1550.12
193.4
42
1543.73
194.2
50
1537.4
195.0
58
1531.12
195.8
19
1562.23
191.9
27
1555.75
192.7
35
1549.32
193.5
43
1542.94
194.3
51
1536.61
195.1
59
1530.33
195.9
20
1561.42
192.0
28
1554.94
192.8
36
1548.51
193.6
44
1542.14
194.4
52
1535.82
195.2
60
1529.55
196.0
21
1560.61
192.1
29
1554.13
192.9
37
1547.72
193.7
45
1541.35
194.5
53
1535.04
195.3
61
1528.77
196.1
22
1559.79
192.2
30
1553.33
193.0
38
1546.92
193.8
46
1540.56
194.6
54
1534.25
195.4
23
1558.98
192.3
31
1552.52
193.1
39
1546.12
193.9
47
1539.77
194.7
55
1533.47
195.5
24
1558.17
192.4
32
1551.72
193.2
40
1545.32
194.0
48
1538.98
194.8
56
1532.68
195.6
For requires please email to sales@starviewint.com I 2
XENPAK I ORDERING INFO
CWDM Dual Fiber Strands XENPAK Modules
Temperature
Applications
Part NO
DateRate
Wavelength
Distance
Fiber Budget
TX Power
RX Sens.
With Digital Diag-
Normal
10G Ethernet
(km)
(dB)
(dBm)
(dBm)
nostic Monitoring
0 ~ +70
10.312Gbps Application
(DDM)
SV-XENPAK-ER4C##
10G;SM
1470nm ~
10
11
-6.5 ~ 6.5
-11
1610nm
## denotes wavelength range from 1470~1610nm.
47=1470nm, 49=1490nm, 51=1510nm, 53=1530nm, 55=1550nm, 57=1570nm, 59=1590nm, 61=1610nm
For requires please email to sales@starviewint.com I 3
