GBIC

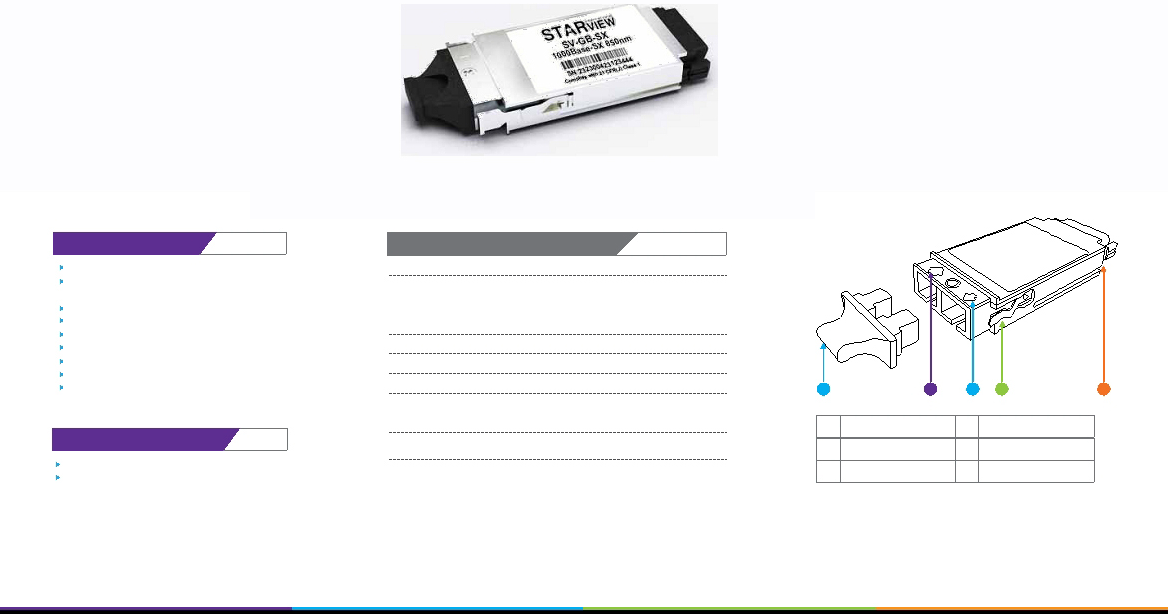

GBIC I FEATURES
GBIC I SPECIFICATIONS
Laser Class 1 Product
Standards
IEEE 802.3z 1000BASE-SX; 1000BASE-LX
Compliant with 802.3z 1000BASE-SX;
Dimensions
Width: 1.2” [30 mm]
1000BASE-LX
Plug-and-Play module
Depth: 2.6” [65 mm]
Hot-swappable
Height: 0.40” [10 mm]
TTL Logic Interface
Copper GBIC Modules
Power
5V, no external power required
Dual Fiber Strands GBIC Modules
Power Consumption
0.8 Watts
CWDM Dual Fiber Strands GBIC Modules
Single Fiber Strand (Bi-Di) GBIC Modules
Environment
0°C – 70°C
1
2
3
4
5
Compliance
UL Registered, CSA, IEC 60825-1 and
IEC 60825-2, CE Mark
1
Optical bore dust plug
4
Spring clip
GBIC I APPLICATIONS
Warranty
2 year
2
Receive optical bore
5
Alignment groove
Gigabit Ethernet
3
Transmit optical bore
--
--------------------------------
1G Fiber channel
For requires please email to sales@starviewint.com I 1
GBIC I ORDERING INFO
Copper GBIC Modules
Temperature
Applications
Part NO
DateRate
Wavelength
Distance
Fiber Budget
TX Power
RX Sens.
Normal
Fiber Channel
Gigabit Ethernet
(km)
(dB)
(dBm)
(dBm)
0 ~ +70
1.0625Gbps
1000Base-X
SV-GB-T2
1.25G
NA
0.1
NA
NA
NA
GBIC I ORDERING INFO
Dual Fiber Strands GBIC Modules
Temperature
Applications
Part NO
DateRate
Wavelength
Distance
Fiber Budget
TX Power
RX Sens.
Normal
Fiber Channel
Gigabit Ethernet
(km)
(dB)
(dBm)
(dBm)
0 ~ +70
1.0625Gbps
1000Base-X
SV-GB-SX
1.25G;MM
850nm
0.55
9
-9 ~ -3
-18
SV-GB-LX1
1.25G;SM
1310nm
10
13
-9 ~ -3
-22
SV-GB-LX2
1.25G;SM
1310nm
20
13
-9 ~ -3
-22
SV-GB-LX4
1.25G;SM
1310nm
40
17
-5 ~ 0
-22
SV-GB-LX8
1.25G;SM
1310nm
80
22
0 ~ 5
-22
GBIC I ORDERING INFO
CWDM Dual Fiber Strands GBIC Modules
Temperature
Applications
Part NO
DateRate
Wavelength
Distance
Fiber Budget
TX Power
RX Sens.
Normal
Fiber Channel
Gigabit Ethernet
(km)
(dB)
(dBm)
(dBm)
0 ~ +70
1.0625Gbps
1000Base-X
SV-GB-LX8C##
1.25G;SM
1270nm ~
80
23
0 ~ 5
-23
1610nm
## denotes wavelength range from 1270~1610nm.
27 = 1270nm, 29=1290nm, 31=1310nm, 33=1330nm, 35=1350nm, 37=1370nm, 39=1390nm, 41=1410nm, 43=1430nm, 45=1450nm, 47=1470nm, 49=1490nm, 51=1510nm, 53=1530nm, 55=1550nm, 57=1570nm, 59=1590nm, 61=1610nm
For requires please email to sales@starviewint.com I 2
GBIC I ORDERING INFO
Single Fiber Strand GBIC Modules
Temperature
Applications
Part NO
DateRate
Wavelength
Distance
Fiber Budget
TX Power
RX Sens.
Normal
Fiber Channel
Gigabit Ethernet
(km)
(dB)
(dBm)
(dBm)
0 ~ +70
1.0625Gbps
1000Base-X
1310 TX
SV-GB-ESX1
1.25G;MM
1550 RX
2
9
-9 ~ 0
-23
1550 TX
SV-GB-ESX2
1.25G;MM
1310 RX
2
9
-9 ~ 0
-23
1310 TX
SV-GB-LX21
1.25G;SM
1550 RX
20
14
-9 ~ 0
-23
1550 TX
SV-GB-LX22
1.25G;SM
1310 RX
20
14
-9 ~ 0
-23
1310 TX
SV-GB-LX23
1.25G;SM
1490 RX
20
14
-9 ~ 0
-23
1490 TX
SV-GB-LX24
1.25G;SM
1310 RX
20
14
-9 ~ 0
-23
1310 TX
SV-GB-LX41
1.25G;SM
1550 RX
40
18
-5 ~ 0
-23
1550 TX
SV-GB-LX42
1.25G;SM
1310 RX
40
18
-5 ~ 0
-23
1310 TX
SV-GB-LX43
1.25G;SM
1490 RX
40
14
-9 ~ 0
-23
1490 TX
SV-GB-LX44
1.25G;SM
1310 RX
40
14
-9 ~ 0
-23
For requires please email to sales@starviewint.com I 3
