Features

  • MPO / MTP connector interface patch cord
  • Customizable fiber optic cable length
  • Available in 12 and 24 core cable fiber types
  • Uses multi-mode 50/125um, OM3 /OM4 Bend-insensitive fiber or single-mode (G652D, G657A1) Bend-insensitive fiber types with type 2mm diameter
  • Comply with IEC 61754-7, Telcordia GR-1435-CORE
  • RoHS 6 compliant(lead free)
  • Supports applications such as 40G LAN, 100G LAN or OTU4 100Gbps



Specifications

  • Cable type: 3.2 mm round LSZH jacketed cable
  • Bandwidth fiber: Multimode OM3 XG lazer optimized ≥2000MHzxKm @850nm
  • Single Mode OS2 ITU-T G.652d 9micron
  • Connector-Type: High connectivity MPO
  • Connector Interface: MPO interface requirements: IEC61754-4.20 and IEC61754-7
  • Connector End face: MPO end face geometry requirements: EN50377-15-1
  • Polishing Quality: Polished end-face quality: IEC61300-3-35
  • Insertion Loss: ≤ 0.5dB OM3 / ≤ 0.6dB SM OS2
  • Return Loss: ≥ 25dB OM3; ≥ 35dB

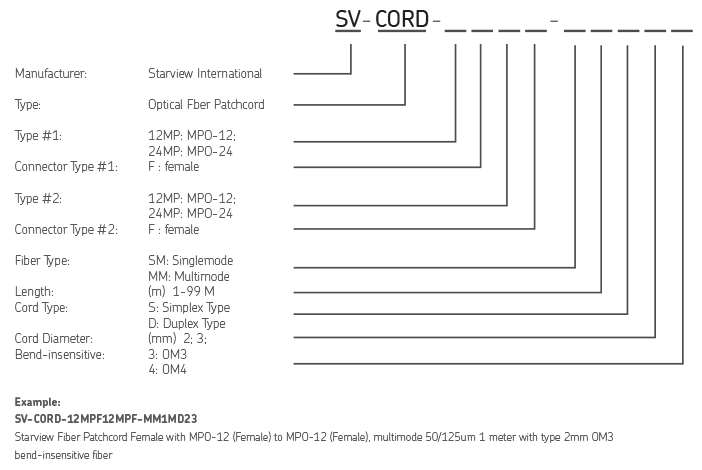

Ordering Information

o mp
